Motor capacitor for BERNINA 707-708, 801-808 and 830
search
  • Motor capacitor for BERNINA 707-708, 801-808 and 830
  • Motor capacitor for BERNINA 707-708, 801-808 and 830
  • Motor capacitor for BERNINA 707-708, 801-808 and 830
  • Motor capacitor for BERNINA 707-708, 801-808 and 830

Motor capacitor for BERNINA 707-708, 801-808 and 830

$39.00

Motor capacitor for BERNINA 707-708, 801-808 and 830

Voltage: 110V - 250V

Quantity

(5/5) out of 8 total ratings
Read the reviews


Instant downloads



Worldwide Shipping & VAT



Terms and conditions of use

Motor capacitors are not only for noise reduction, but also to protect the motor from arcing and also act as spark suppressors.
They prolong the life of the motor.

This Motor Capacitor have the bleed resistor inside.

With cable lugs.

Components:
1x 0.02 µF X2
1x 0.06 µF X2
2x 2200 pF Y2
1x 2.2 MΩ

Voltage:
110V - 250V

Dimensions:
Height: 12.2 mm
Width: 20.9 mm
Length: 35 mm

Installation:

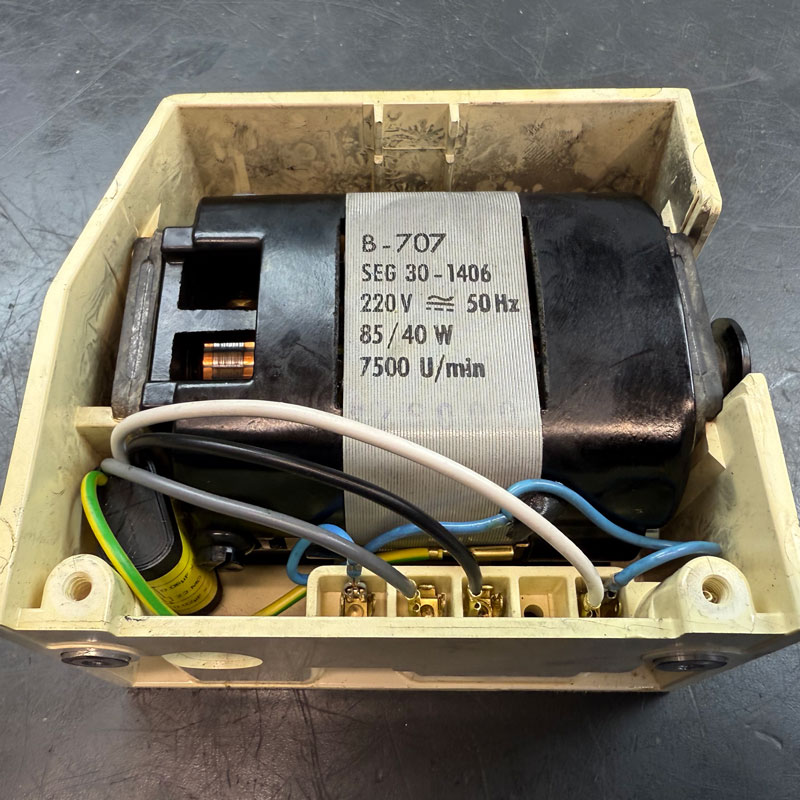

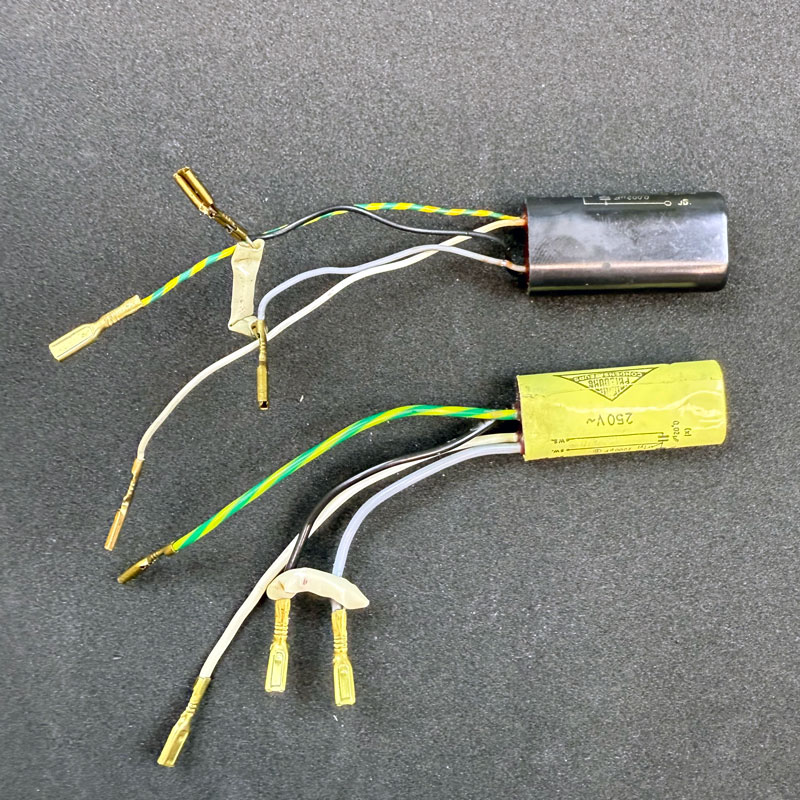

A few different motor capacitors were used but their function is the same. The differences are the color of the capacitor itself and a slightly different color of the wires. Below is an overview of which colors are on the old wires and which they correspond to on the new one.

Color - Original 1   Color - Original 2   Color - New
White White White
Black Black Black
Grey Brown Grey
Green / Yellow Transparent Green / Yellow


On the old capacitors there is also a resistor inside the white plastic sleeve, attached between the gray and black wires. When installing the capacitor, you ignore this resistor since it is located inside the new one.

Inst Bernina 900 Conn
Inst Bernina 900 Conn

Connect the wires on the new capacitor to where the wires with the corresponding color were connected.

The yellow/green wire is always connected to the motor.

MCAPT22
