BERNINA L1230 Power Supply Capacitor Repair Kit
$32.00

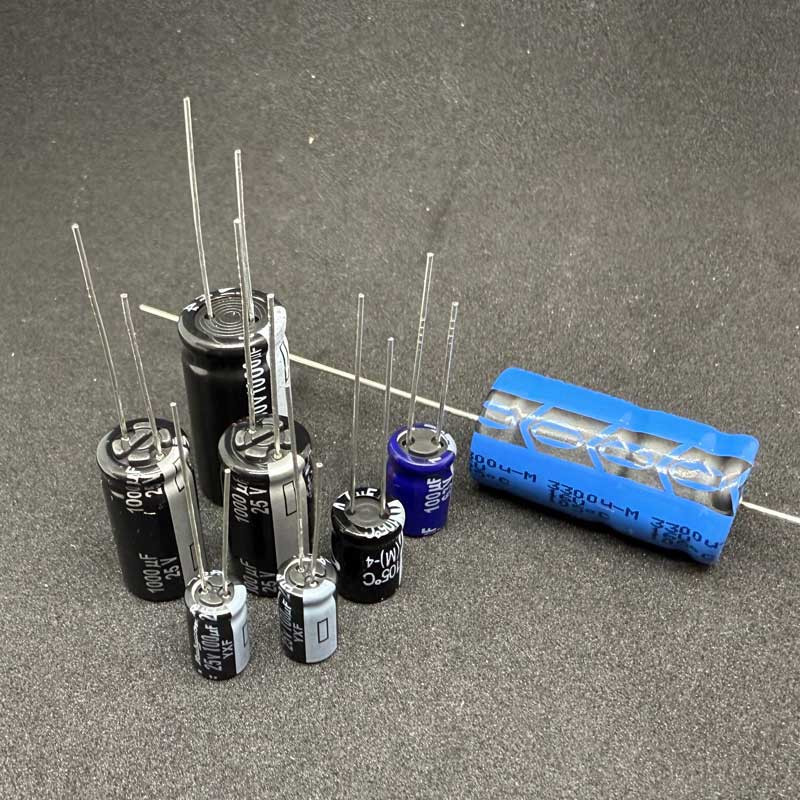

Capacitor Repair Kit for BERNINA L1230 - 110V & 220V PCB
1x 47µF 63V Electrolytic Capacitor
2x 100µF 25V Electrolytic Capacitor
1x 100µF 63V Electrolytic Capacitor
2x 1000µF 25V Electrolytic Capacitor
1x 1000µF 50V Electrolytic Capacitor
1x 3300µF 16V Electrolytic Capacitor
Instant downloads
Worldwide Shipping & VAT
Terms and conditions of use

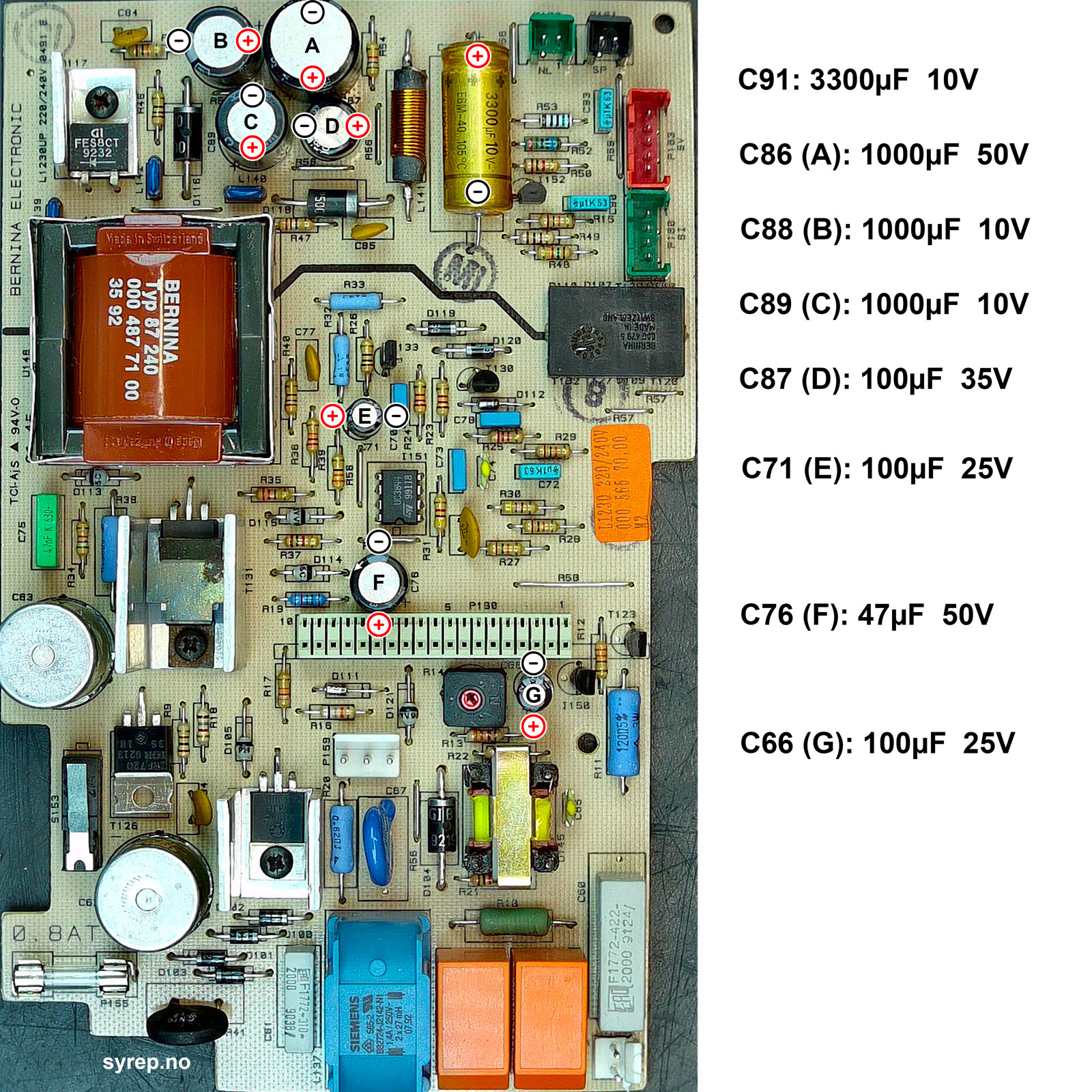

PCB placement BERNINA L1230:
Mark:
The L1230 PCB was delivered in two versions: 500 & 565
Capacitor C66 (G) is rotated 90 deg. right on the 500 version compared to the 565 version on the image below.
Together with the markings on the PCB is the letter A to G on top of the standing capacitors on the image.
100µF 25V - C66 (G)
100µF 25V - C71 (E)
47µF 63V - C76 (F)
1000µF 50V - C86 (A)
100µF 63V - C87 (D)
1000µF 25V - C88 (B)
1000µF 25V - C89 (C)
3300µF 16V - C71
Information about capacitors included in the repair kits.
Note that the color and size may vary from the product images. The voltage can also vary depending on the component in your machine, but the number of volts the new component can handle will then be higher. In some cases, the manufacturer has changed the value of some components. You will receive components with values they have changed to, so this will work without problems even if the value is slightly different.
These are not electrolytic capacitors and can be mounted both ways.
On standing electrolytic capacitors, the leg that is minus is shown with a strip of minus sign. This leg is also shorter in length.
On horizontal electrolytic capacitors, arrows show the direction of the leg which is minus. This side is also only metal, while the positive side is insulated with rubber.
You find electronic schematics for other BERNINA machines here: syrep.no/repair
