Husqvarna PRISMA 940, 950 & 960 Capacitor Repair Kit

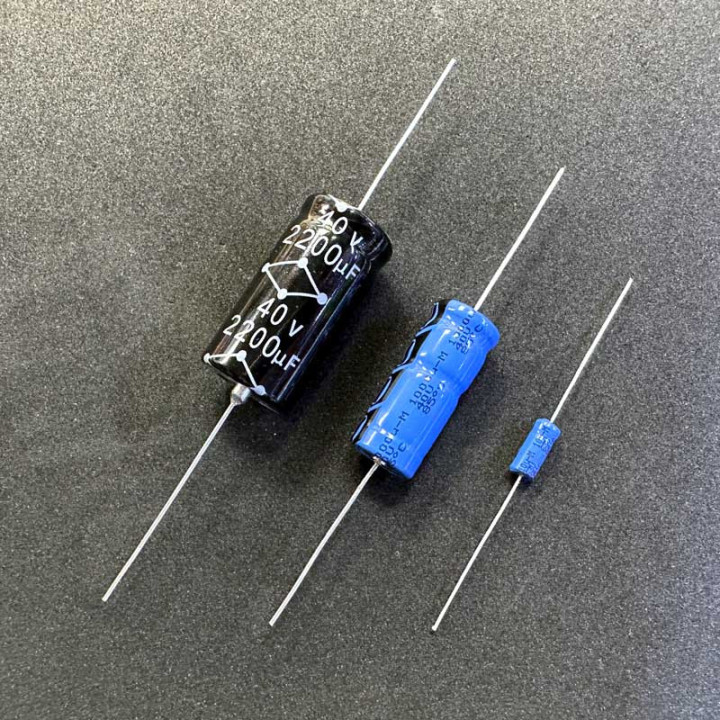

Capacitor replacement for Husqvarna PRISMA 940, 950 & 960
1x 10µF 25V Electrolytic Capacitor
1x 1000µF 40V Electrolytic Capacitor
1x 2200µF 40V Electrolytic Capacitor

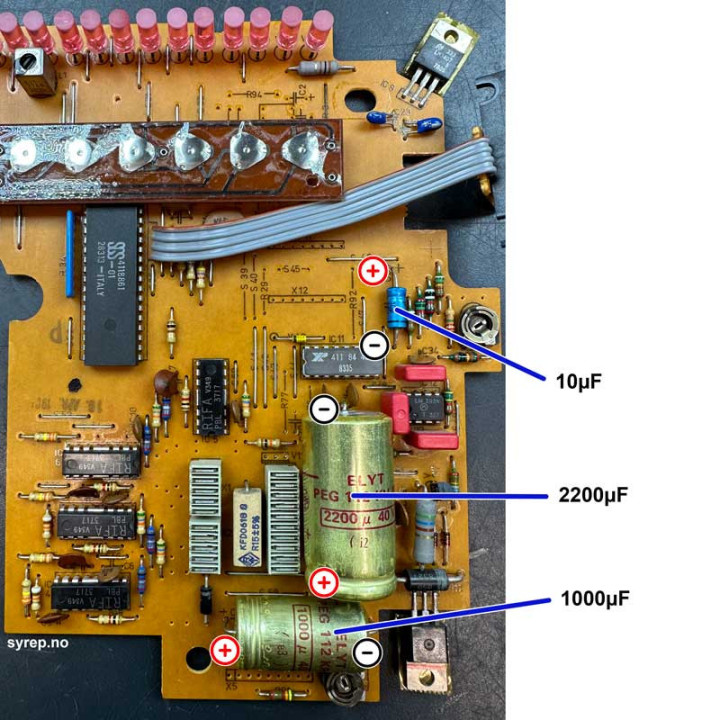

PCB placement:
1x 10µF 25V Electrolytic Capacitor
1x 1000µF 40V Electrolytic Capacitor
1x 2200µF 40V Electrolytic Capacitor
Remember the polarity on Electrolytic Capacitors
Information about capacitors included in the repair kits.
Note that the color and size may vary from the product images. The voltage can also vary depending on the component in your machine, but the number of volts the new component can handle will then be higher. In some cases, the manufacturer has changed the value of some components. You will receive components with values they have changed to, so this will work without problems even if the value is slightly different.
These are not electrolytic capacitors and can be mounted both ways.
On standing electrolytic capacitors, the leg that is minus is shown with a strip of minus sign. This leg is also shorter in length.
On horizontal electrolytic capacitors, arrows show the direction of the leg which is minus. This side is also only metal, while the positive side is insulated with rubber.
You find electronic schematics and service manuals for Husqvarna Viking PRISMA here: syrep.no/repair
-
ReferenceELKIT24
